How to Select

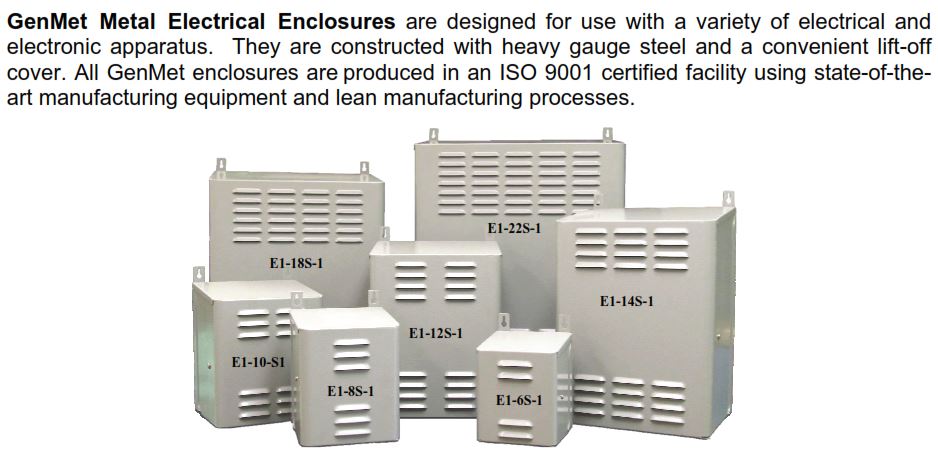

 Family pic

Basic Specification

Basic Specifications
Locations Type 1 (indoors) and Type 3R (outdoors)
Construction 16 gauge welded steel, with provision for wall mounting, louvered cover.
Finish ANSI 61 Gray Polyester Powder Coat finish.  Dupont ASA-61 Gray PFH-509-S5
Approvals UL / cUL, File E464593 (UL-508A Industrial Control Panel Enclosure)

Enclosure Selection by Size

897Select the enclosure based on the physical size required, then confirm that the typical heat dissipation will be adequate for your equipment. For greater heat dissipation, either use a larger enclosure or consider having us provide more louvers for your enclosure.

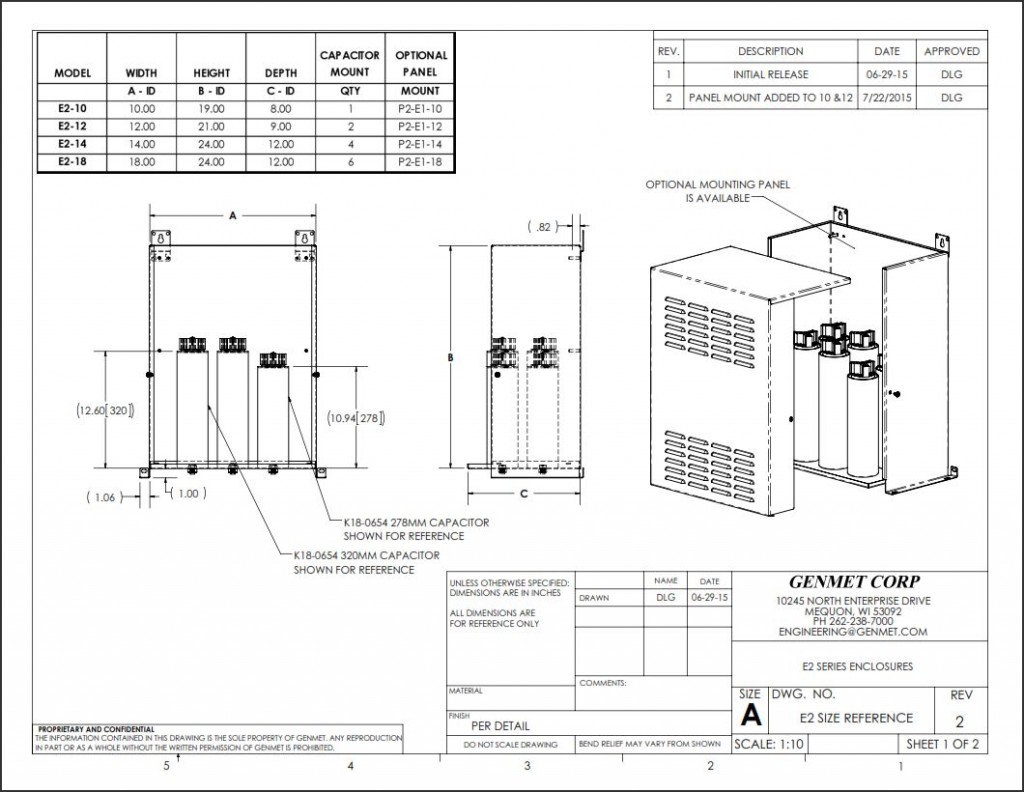

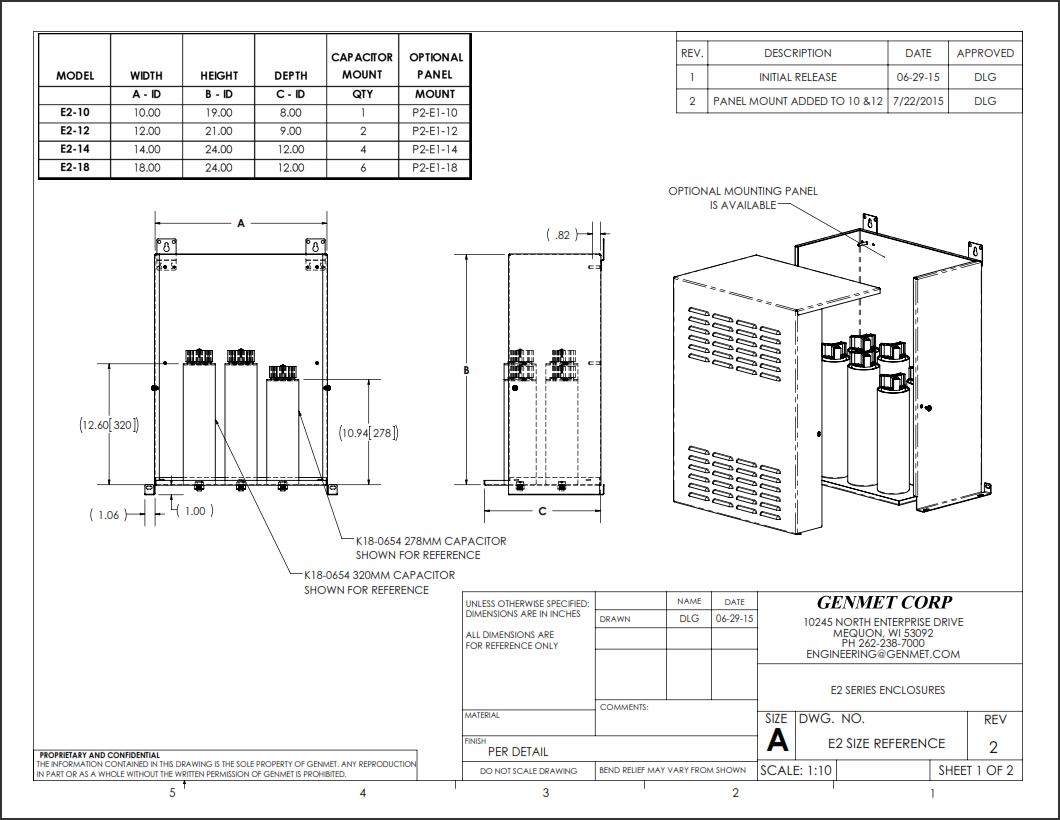

E2 selection

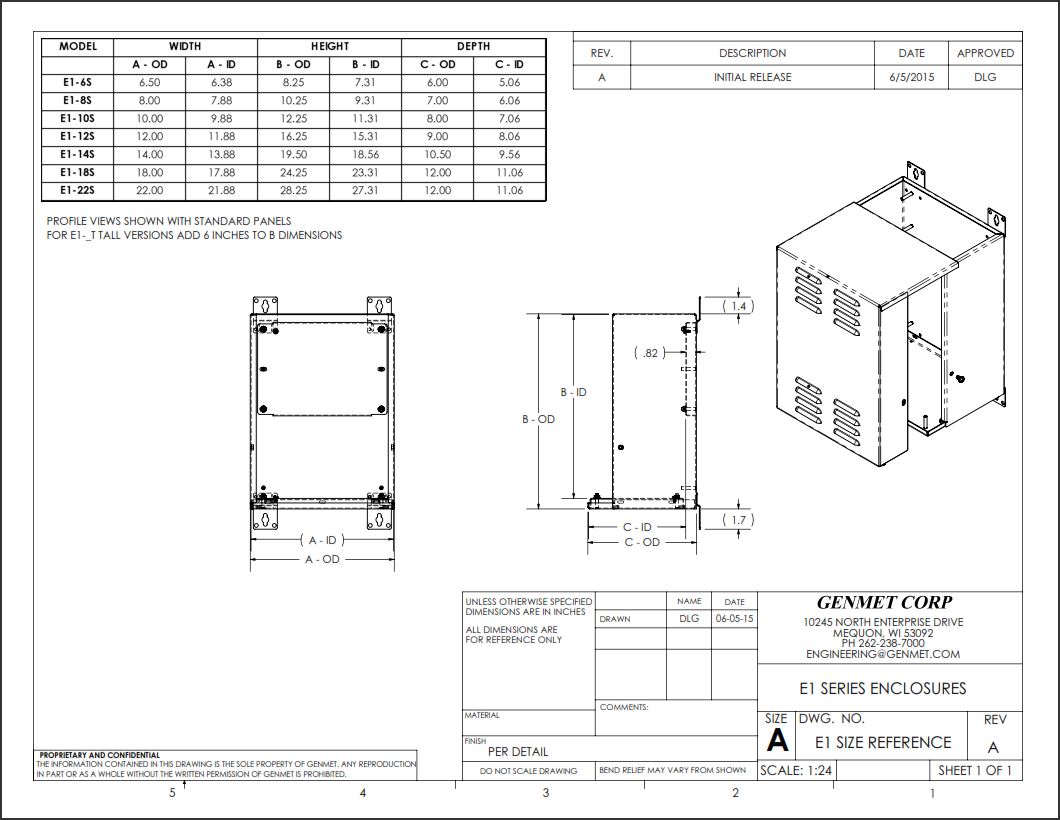

E1 selection

For additional information please call GenMet at 262-238-7000 or email or
